Chapter 4
Miscellaneous Structural Support Products
CHAPTER 4
MISCELLANEOUS STRUCTURAL SUPPORT PRODUCTS
Step 4
- Completely saturate the CarbonArmor
strap with epoxy resin
(Figure 4.4.2.a4)
.
Step 5
– Adhere the CarbonArmor strap to the
wall
(Figure 4.4.2.a5)
.
Step 6
– Apply a final topcoat of epoxy. Use the
provided roller to apply pressure to the surface
of the fabric to ensure good bonding to the wall
and to roll out any trapped air before the epoxy
sets
(Figure 4.4.2.a6)
.
4.4.2.1 ArmorLock
™
System
The optional ArmorLock
™
bracket and FRP
system essentially splices with CarbonArmor
straps to extend reinforcement to the building’s
rim joist framing. ArmorLock provides additional
reinforcement and stabilization in situations where
either movement is observed at the top of the wall,
or the owner wishes to prevent such movement.
Step 1
- Bracket is secured to the rim joist with
heavy-duty lag screws
(Figure 4.4.2.1.a1)
.
Step 2
– ArmorLock strap is saturated with
epoxy resin
(Figure 4.4.2.1.a2)
.
Step 3
– ArmorLock system is connected to
the bracket and tensioned into position
(Figure
4.4.2.1.a3)
.

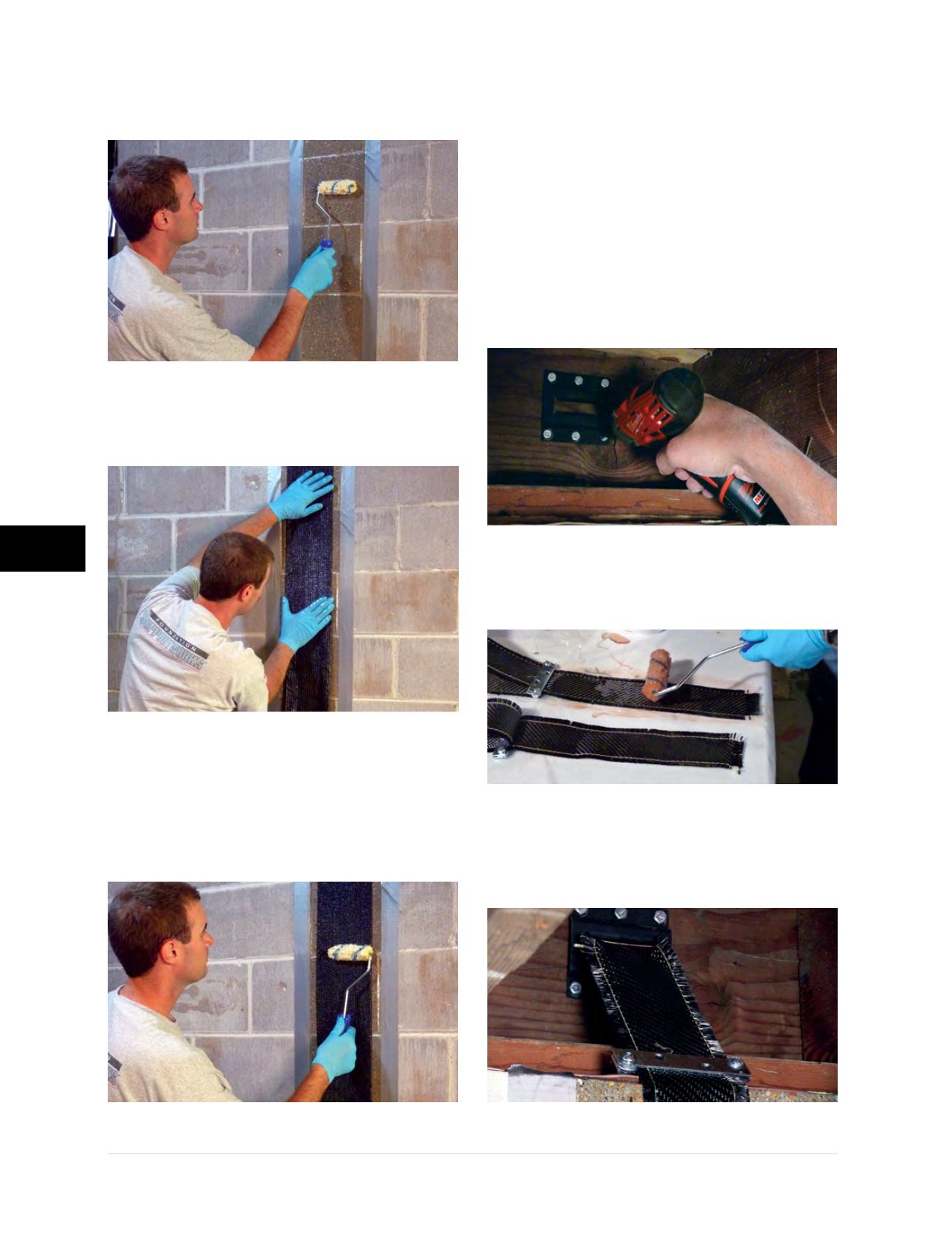

Figure 4.4.2.a4
