          be placed at a distance less than 7 feet from


          the axis of the pile shaft. The capacity of the


          hand-held equipment decreases significantly


          when used outside of these parameters. The


          force that will be required to restrain the


          torque arm will also vary, but even within the


          operation parameters just described, restraint


          forces can approach 1,000 lb. The torque arm


          restraint is therefore recommended to be


          capable of resisting a force of at least 1,500 lb.


          Lateral restraint is not only required at the end


          of the torque arm. The drive head shall also be


          restrained from lateral movement.


          Drive heads used with hand-held installation


          equipment should not be operated at speeds


          exceeding 10 rpm. Operators shall be ready


          at the controls and prepared to shut down


          the equipment at any moment.


          Failure to properly restrain and operate the


          hand held installation equipment per these


          guidelines can result in serious injury or death.



            2.12.2.2 Installation Tooling



          Installation tooling consists of the components that


          are attached in-line between the drive head and the


          helical pile, generally a hex adaptor and a product


          adaptor. The drive head output shaft is typically a


          hexagonal shape with measurements ranging from


          2 inches to 3 inches across flats. The hex adaptor


          slides over and is pinned to the output shaft of the


          drive head


          (Figure 2.12.2.2.a)


          . The flange plate of the


          hex adaptor has abolt holepatternwithhole spacing


          and diameters to allow bolting to the appropriate


          product adaptor for the dimensions of helical pile


          shaft to be installed. Product adaptors are available


          for the various sizes of hollow round shaft as well


          as for solid square shaft. The ends of round shaft


          helical piles generally slide into the product adaptors


          and are connected with temporary hitch pins or


          bolts for installation


          (Figure 2.12.2.2.b)


          . Solid-stock


          internal product adaptors may also be used for


          certain sizes of the round shaft helical product line.


          The ends of square shaft helical piles and tiebacks


          slide into a square, socket-like product adaptor


          (Figure 2.12.2.2.c)


          .


          Installation tooling may also include an in-line


          torque monitoring device as discussed in the


          following section.


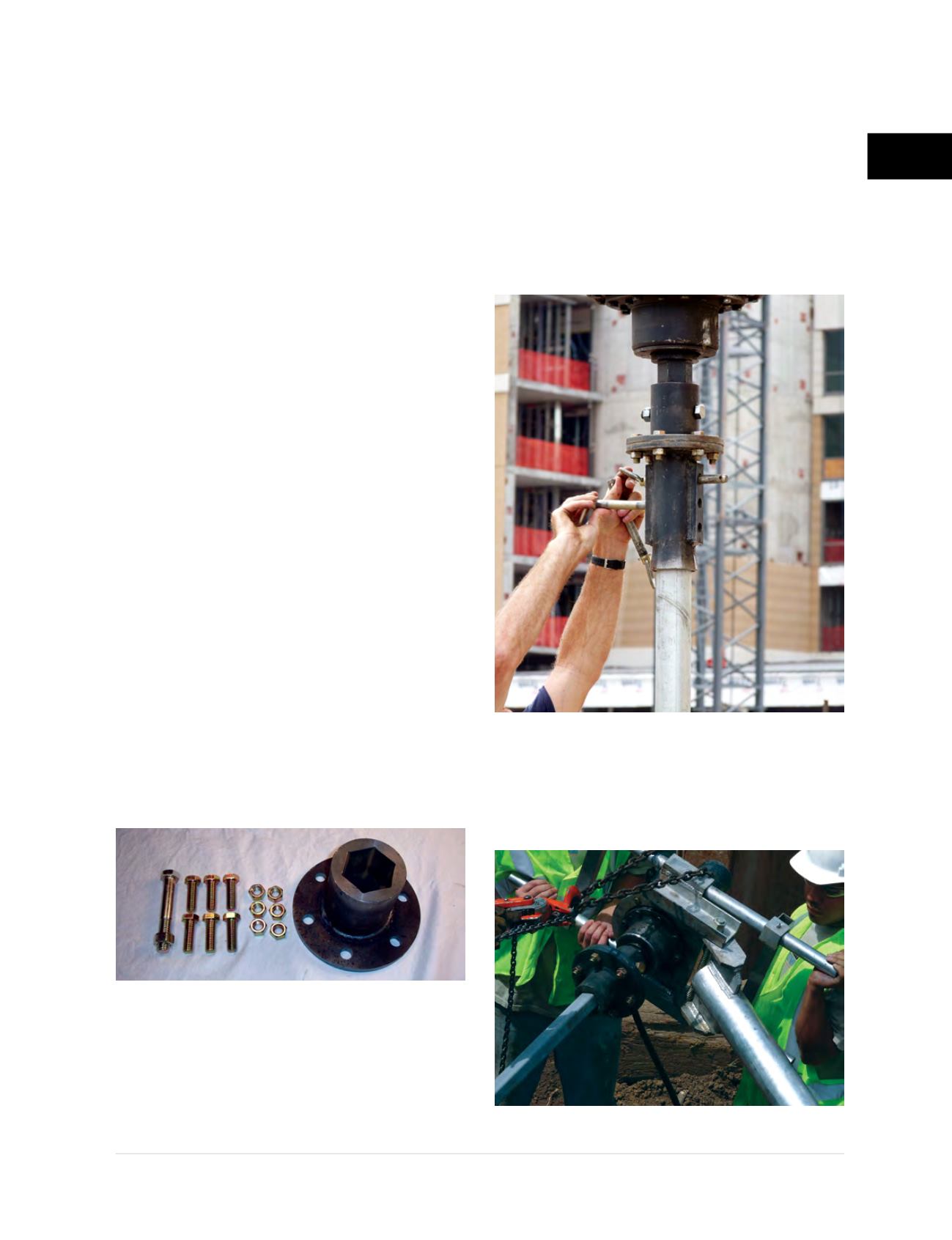

          Figure 2.12.2.2.a


          Hex adaptor


          Figure 2.12.2.2.b


          Round shaft product adaptor


          Figure 2.12.2.2.c


          Square shaft adaptor
