APPENDIX 2A
HELICAL PRODUCT RATINGS, PROPERTIES AND DETAILS
Chapter 2
Helical Foundation Systems

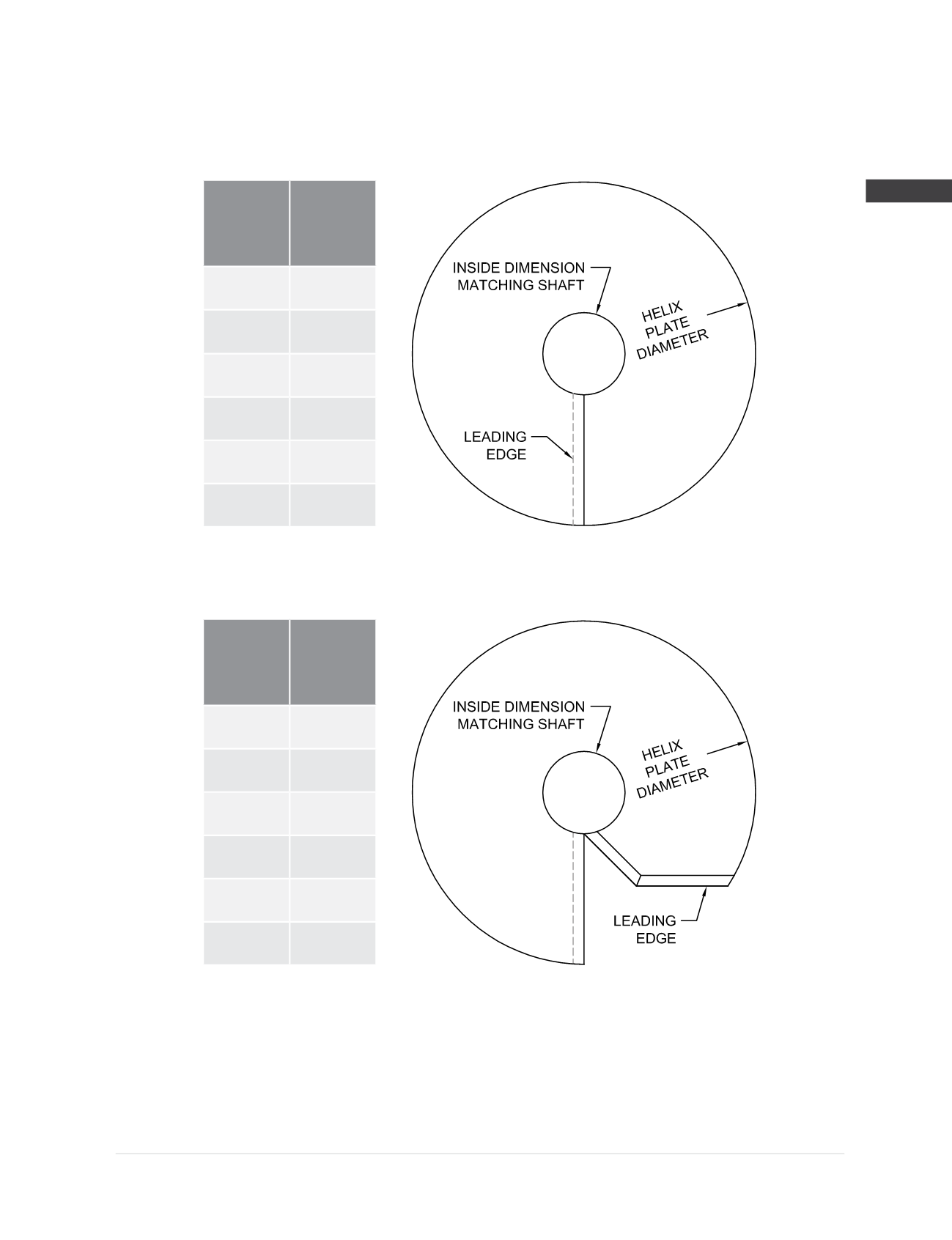

HP287 Helix Plate Net Bearing Areas
H-Style Plates
Plate
Diameter
(inches)
Area
(ft
2
)
6
0.15
8
0.30
10
0.50
12
0.74
14
1.02
16
1.35
V-Style Plates
(1)
Plate
Diameter
(inches)
Area
(ft
2
)
6
0.14
8
0.28
10
0.45
12
0.66
14
0.91
16
1.19
(1)
V-Style plates feature a special cut on the leading edge (or cutting edge). This edge is cut at two successive 45° angles to roughly simulate
a spiral. This is in addition to the 45° bevel on the leading edge which is a standard feature for helix plates of both styles. V-Style plates are
appropriate for use in applications where rocky or rubble-filled soils are anticipated, or where very dense layers need to be penetrated.
