            2.7.2 Cylindrical Shear Method



          The design equation for determining helical pile


          capacity by the cylindrical shear method was


          originally developed by Mitsch and Clemence


          (1985) and later modified for simplicity.


          The cylindrical shear method assumes the


          development of a soil friction column (cylinder)


          between the upper and lower helix plates along


          with individual bearing of either the upper or


          lower helix, depending upon loading direction.


          The ultimate bearing capacity is then determined


          by the summation of shear strength of the soil


          cylinder, shaft adhesion/friction and end bearing


          of either the upper or lower helix. For deep


          cylindrical shear failure to occur, spacing of the


          helix plates along the shaft is generally less than


          or equal to 3 times the diameter of the leading


          plate and the uppermost helix plate is embedded


          to a depth of at least 5 diameters. Skin friction


          along the shaft is generally ignored for shaft


          sizes less than 6 inches in outside diameter.


          Figure 2.7.2.a


          illustrates the load transfer


          mechanism for the cylindrical shear method in


          compression loading.


          The helical pile capacity by the cylindrical shear


          method can be calculated as:



            Q




            u




            = 2πRL(c+K




            o




            q’tanΦ)+A




            h




            (cN




            c




            +q’N




            q




            )



          Where,



            Q




            u



          = Ultimate Pile Capacity (lb)



            R



          = Average Helix Radius (ft)



            L



          = Total Spacing Between All Helix


          Plates (ft)



            c



          = Cohesion at the Helix Depth (lb/ft


          2


          )



            K




            o



          = Dimensionless At-Rest Earth


          Pressure Coefficient



            Φ



          = Soil Friction Angle (degrees)



            A



          h


          = Area of the Top or Bottom Helix


          Plate (ft


          2


          )



            q’



          = Effective Vertical Overburden Stress


          at A


          h


          (lb/ft


          2


          )



            N




            c




            , N




            q



          = Dimensionless Bearing Capacity


          Factors


          Refer to Section 2.7.1 for discussions


          regarding Bearing Capacity Factors and


          Critical Depth.


          Based upon previous research, the individual


          bearing method and cylindrical shear method


          should provide similar results at helix spacings


          of 2.5D to 3.5D. FSI promotes the use of the


          individual bearing method for determination of


          pile capacity due to its relative simplicity and


          since the original form from which this method


          is derived is already widely accepted by the


          geotechnical engineering community.

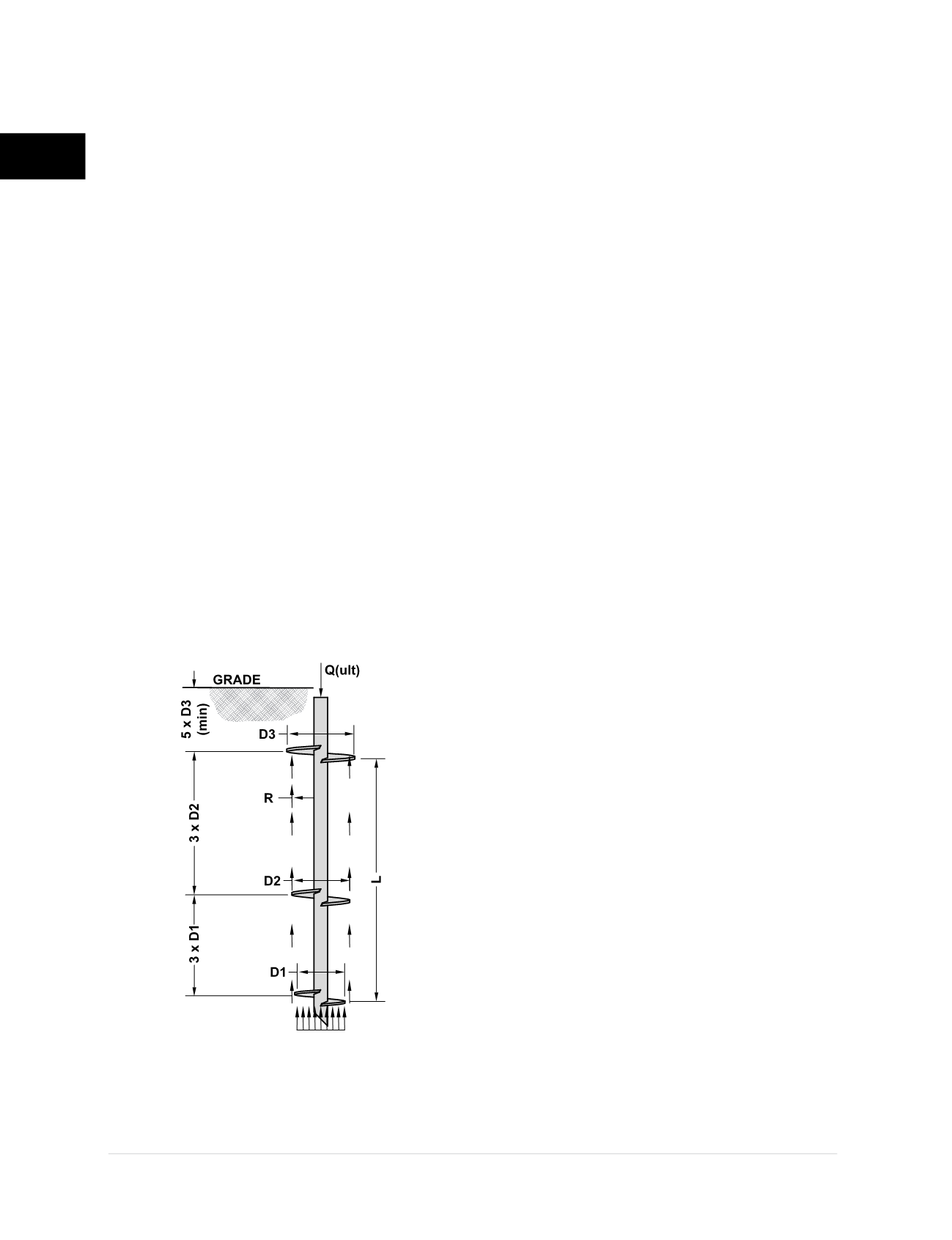

          Figure 2.7.2.a


          Cylindrical Shear Method
