Chapter 3
Hydraulically-Driven Push Piers
CHAPTER 3
HYDRAULICALLY-DRIVEN PUSH PIERS
3.4 FSI Foundation
and Slab Push Pier
Bracket Assemblies
The FSI push pier product line includes multiple
shaft sizes and bracket assemblies to account
for most typical system uses and applications. A
summary table of the products and system use
categories is presented as
Figure 3.4.a
. Bracket
systems are categorized by their design or
system use and include under-footing brackets,
flush-mount brackets and slab pier brackets. The
bracket assemblies again include the bracket,
pier cap, external sleeve (if applicable), and
all associated hardware. Crawl space systems
utilize under-footing bracket assemblies with
a shorter external sleeve. These systems are
designated with part numbers starting with
“CS”. Part numbers with a “CR” designation
identify assemblies with coil rods; otherwise, the
assembly comes with threaded rods.
Figure 3.3.3.1.a

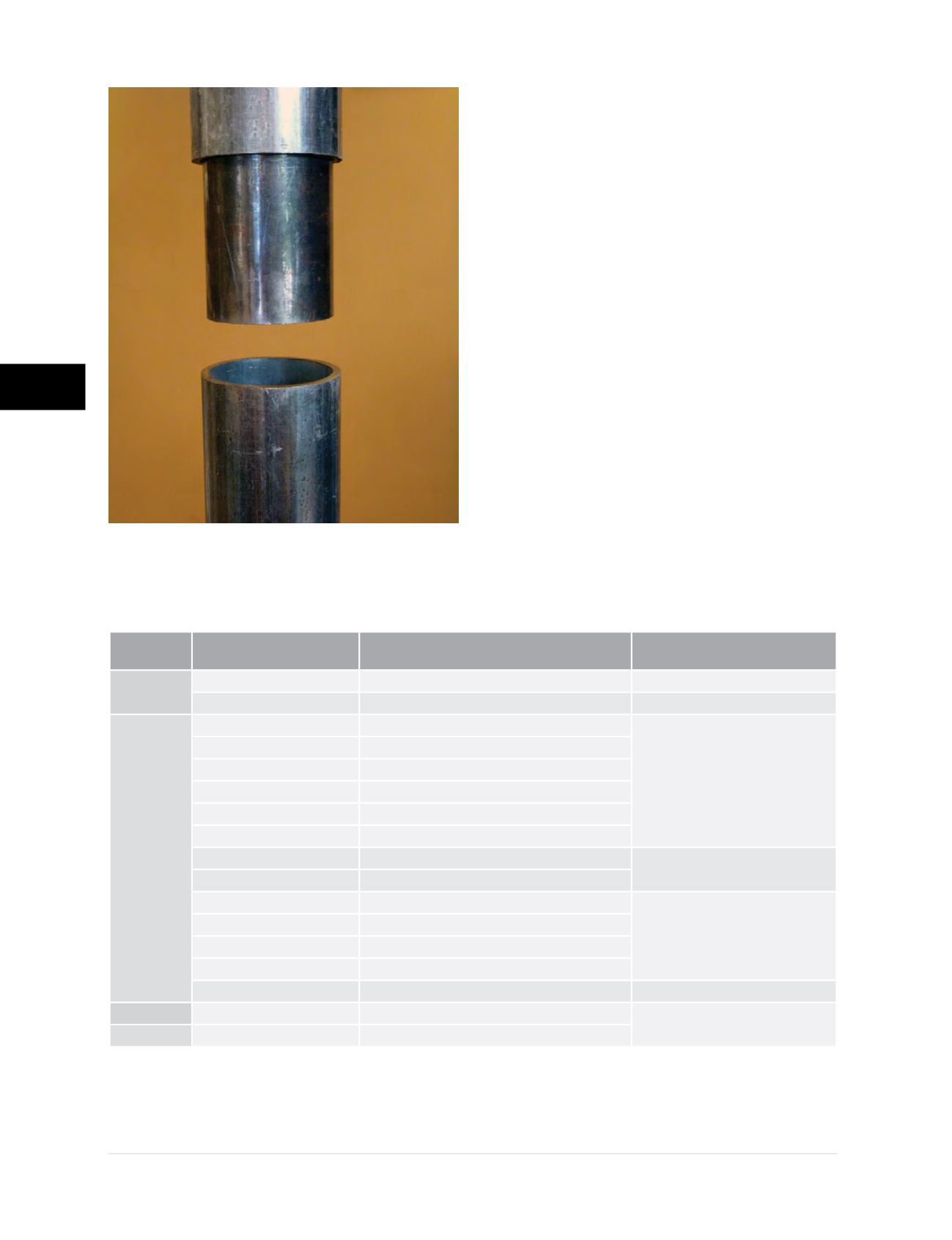

Push pier tube coupling
Push Pier
System
Bracket Assembly Part
No.
Bracket Description
System Use
PP237
PP238CRBA
FS238B - standard 2-degree
Under-footing
CS238CRBA
FS238B - standard 2-degree
Crawl space
PP288
PP288BA
FS288B - standard 2-degree
Under-footing
PP288CRBA
FS288B - standard 2-degree
PP288BVA
FS288BV – vertical
PP288CRBVA
FS288BV – vertical
PP288BLA
FS288BL - 2-degree low-profile
PP288CRBLA
FS288BL - 2-degree low-profile
CS288BA
FS288B – standard 2-degree
Crawl space
CS288CRBA
FS288B – standard 2-degree
FS288BFM22A
FS288BFM - with wedge anchors
Flush-mount
FS288CRBFM22A
FS288BFM - with wedge anchors
FS288BFM31A
FS288BFM - with adhesive anchors
FS288CRBFM31A
FS288BFM - with adhesive anchors
SPBA
Slab pier bracket (assembled on site)
Slab Pier
PP350
PP350BA
FS350BV - vertical
Under-footing
PP400
PP400BA
FS400BV - vertical
Figure 3.4.a
FSI push pier bracket assemblies
